TEE STRAINER

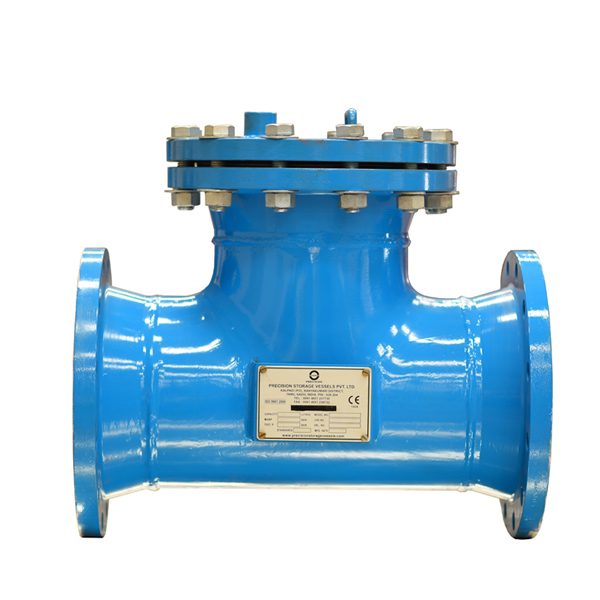

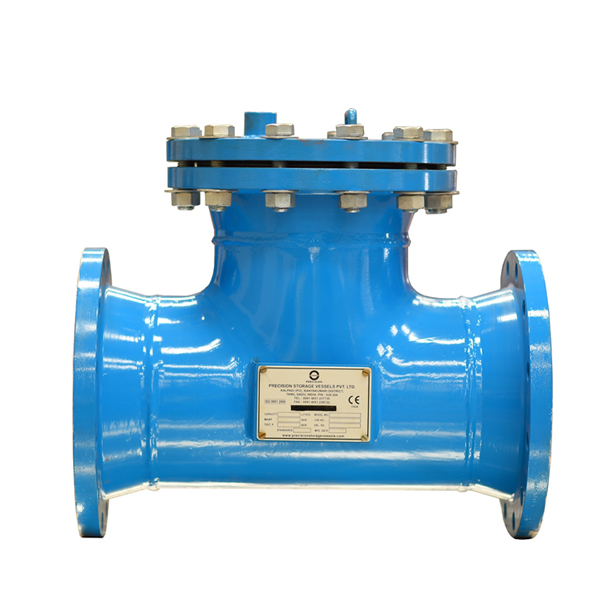

FABRICATED TEE STRAINER

Fabricated tee strainers are widely used when standard strainers cannot meet exact piping requirements. Standard units are fabricated as per ASME Section VIII Div I Standards.

FEATURES

  • Suitable for Horizontal or vertical installations through bolt cover is standard.
  • Stainless Steel perforated screens as standard.
  • End connection can be Buttweld end or Flanged.

 MEDIUM

Steam, Liquid, Gas and Oil.

APPLICATION

  • Waste Water
  • Mining
  • Process Equipment
  • Power Industry

STANDARD EQUIPMENT

Fabricated tee strainer is manufactured in carbon steel A234 Grade. Tee strainers can also be manufactured in stainless steel or other alloy steel as per requirements.

Design Code ASME Section VIII Div 2
Body Material Carbon Steel SA234
Top Cover Forged Carbon Steel SA105
Top Cover Open Assembly Forged Carbon Steel SA105
Screen Material Stainless Steel 304
Bolts Carbon Steel SA193-B7
Nuts Carbon Steel SA194-2H
Flanges PN16, PN25, PN40, Class 150 & Class 300
Type of Flanges Weld Neck Flanges
Design Pressure Standard 10 bar, other pressure upon request
